Herbicide Spray Boom “Ridged Brushes”
For plantation and orchards spraying Specifications: Herbicide spray boom, stainless steel cabins with a spring system in each cabin. The cabins are covered with brush protecting system to prevent hovering of the sprayed chemicals during windy weather conditions. Spraying width 4 – 6 m. Hydraulic opening, closing and lifting. Front hitch. Adjustment of the boom […]
“Turbo” Air-Blast Sprayer
Specifications: Trailed “Turbo “sprayer. Powerful blower 820 mm. Stainless steel Spraying arches + ceramic nozzles + valves. Diaphragm or piston pump. Double pressure system. Filtering system. 2 speeds gearbox. Stainless steel trailed tank 1000-3000 liter. Video: https://www.youtube.com/watch?v=n7_JXvuVzWo&feature=emb_logo קודם הבא
2 Levels Air Blast Orchard Sprayer
Specifications: Top fan: 820 mm diameter. Lower Fan: 820 mm diameter. Air output at 42 MT/sec. Lifting by hydraulic cylinder to a max height of 3.5m Stainless steel manifold with air outlets + conjet ceramic nozzles + valves Air straightening wings Mechanical fan drive enables individual fan operation. Diaphragm pump or piston. Stainless steel trailed […]
3 Point Mounted Air Blast Sprayer
Specifications: 3 point mounted sprayer. Powerful blower 820 mm. Stainless steel spraying arches + ceramic nozzles and valves. Air straightening wings. Diaphragm or Piston pump. Double pressure & filtering system. 2 speeds gearbox + natural. Stainless steel trailed tank 500-1000 liter. קודם הבא
“OHAD” Sprayer
For plantations Specifications: Three point mounted sprayer. Designed for spraying high trees up to 5.5m height, providing full and affective coverage. Blower with a centrifugal clutch in order to prevent breakage. The sprayer’s body and air-jets are made of stainless steel. 1000 – 2000 liters trailed stainless steel tanks The 4 air-jets are adjusted to […]
Three Point Sprayer
Multifunction sprayer for spraying with spray guns, spray booms etc. Specifications: Three point sprayer Suitable for spraying with spray guns and a variety of spray booms. Stainless steel tank 300-1500 liter. Pressure control system including filtering & control device. Spray pump piston/diaphragm. קודם הבא
Trailed “RAZ – 500 Canon” sprayer
For spraying flowers vegetables and open field crops Specifications: Trailed air blast / blower sprayer. 1000-2000 liter stainless steel trailed tank. Diaphragm or piston pump. Double pressure system. Hydraulic piston for turning the canon spray head up to 270 degrees. Hydraulic elevation up to 3m Spraying distance up to 25m An option to spray without […]
“OFEK” Sprayer
Special design sprayer for spraying greenhouses, open field crop, flowers & vegetables Specifications: Low volume three point mounted sprayer. Stainless steel tank 500-1000 liter. A fan with a centrifugal clutch to prevent breakage. Piston or diaphragm pump. Spray boom 12m wide. Adjustable stainless steel arms with 10 air outlets, adjusted according to the crop’s layout. […]
“Miniraz” Two Sides Sprayer
Specifications: Three point lift-mounted sprayer 500 liter stainless steel tank Diaphragm pump or piston pump according to require. Multiplied radial fan. Heavy-duty gearbox. Double pressure system suitable for spraying with spray guns High pressure when fan is disconnected. Two Sides” Spray head with 12 air-outlets, individual side operation. Up to 14m spraying distance. קודם הבא
“Raz 500 Canon” Sprayer
Special design low volume sprayer for greenhouses and open field spraying Specifications: Three point mounted Air blast /blower sprayer. 500-1000 liter stainless steel tank. Diaphragm or Piston pump. Double pressure system. Hydraulic piston for turning the canon spray head up to 270 degrees. Spraying distance up to 25m An option to spray without the blower. […]
“Miniraz” Canon Sprayer
Specifications: Three point lift-mounted sprayer 500 liter stainless steel tank Diaphragm pump or piston pump according to require. Multiplied radial fan. Heavy-duty gearbox. Double pressure system Suitable for spraying with spray guns High pressure when fan is disconnected. Two Sides” Spray head with 12 air-outlets, individual side operation. Up to 14m spraying distance. קודם הבא
Mounted Sprayer with Hydraulic Spray Boom 12-16m
For flowers, vegetables and open field crops Specifications: Three point mounted or trailed sprayer 500 – 2000 lt. trailed stainless steel tank. Piston or diaphragm pump according to requirement. 12 to 16m stainless steel spray boom. 2 Flexible arms with shock absorbers to prevent structure damage. Spraying height 50 – 200cm. above the ground. Hydraulic pistons for […]
Spray Boom 6-14m
Spraying open field crops Specifications: 3 point mounted sprayer. 500-1500 liter stainless steel tank. Spray pump piston/diaphragm. Stainless steel spray boom 6-14 m wide. Pressure system: pressure gauge, filtering & control Easy manual & hydraulic folding קודם הבא
“Miniraz” Two Sides sprayer
Special design low volume sprayer for open field spraying Specifications: Three point lift-Mounted sprayer 500 liter stainless steel tank Diaphragm pump or piston pump according to require. Multiplied radial fan. Heavy-duty gearbox. Double pressure system suitable for spraying with spray guns High pressure when fan is disconnected. Two Sides” spray head with 12 air-outlets, individual […]
“OFEK” Sprayer
Special design sprayer for spraying greenhouses, open field crops, flowers & vegetables Specifications: Low volume three point mounted sprayer. Stainless steel tank 500-1000 liter. A fan with a centrifugal clutch to prevent breakage. Piston or diaphragm pump. Spray boom 12m wide. Adjustable stainless steel arms with 10 air outlets, adjusted according to the crop’s layout. […]
“Raz 500 Canon” Sprayer
Special design low volume sprayer for greenhouses and open field spraying Specifications: Three point mounted air blast /blower sprayer. 500-1000 liter stainless steel tank. Diaphragm or piston pump. Double pressure system. Hydraulic piston for turning the canon spray head up to 270 degrees. Spraying distance up to 25m. An option to spray without the blower. […]
Stationery Greenhouse Sprayer
Stationery greenhouse sprayer used as central spray Specifications: Diaphragm spray pump or piston pump. capacity 80-120 Lit/Min. Stainless steel tank 500-2000 liter. Electric motor with control box or gasoline engine.
Stationery Spraying Unit
Specifications: A spraying unit for central spraying systems high pressure system including filtering. Electric motor or gasoline engine. Diagram or piston pump 80 – 120 Lit/Min Without a tank. Can be connected to an existing tank. קודם הבא
Mobile Greenhouse Sprayer
Design for best maneuverability inside greenhouses. Spraying with spray gun or spraying booms Specifications: Diaphragm spray pump or piston pump. capacity 30-100 Lit/Min. Stainless steel tank 500-1500 liter. Manuel pressure regulator 0-40 atm. Electric control box. Electric motor or gasoline engine. קודם הבא
Wheelbarrow Sprayer
Specifications: Wheelbarrow agricultre sprayer with a 120-200 liter plastic or stainless steel tank. Hydraulic agitation. Gasoline engine 6.5 HP. B&S “vanguard” or electric motor. Diaphragm Spray pump AR-30. 2 pneumatic wheels. Hose reel for 50-100 Mt. hose + spray hose. Additional spraying equipment: Spray guns, spray booms, towing shaft. קודם הבא

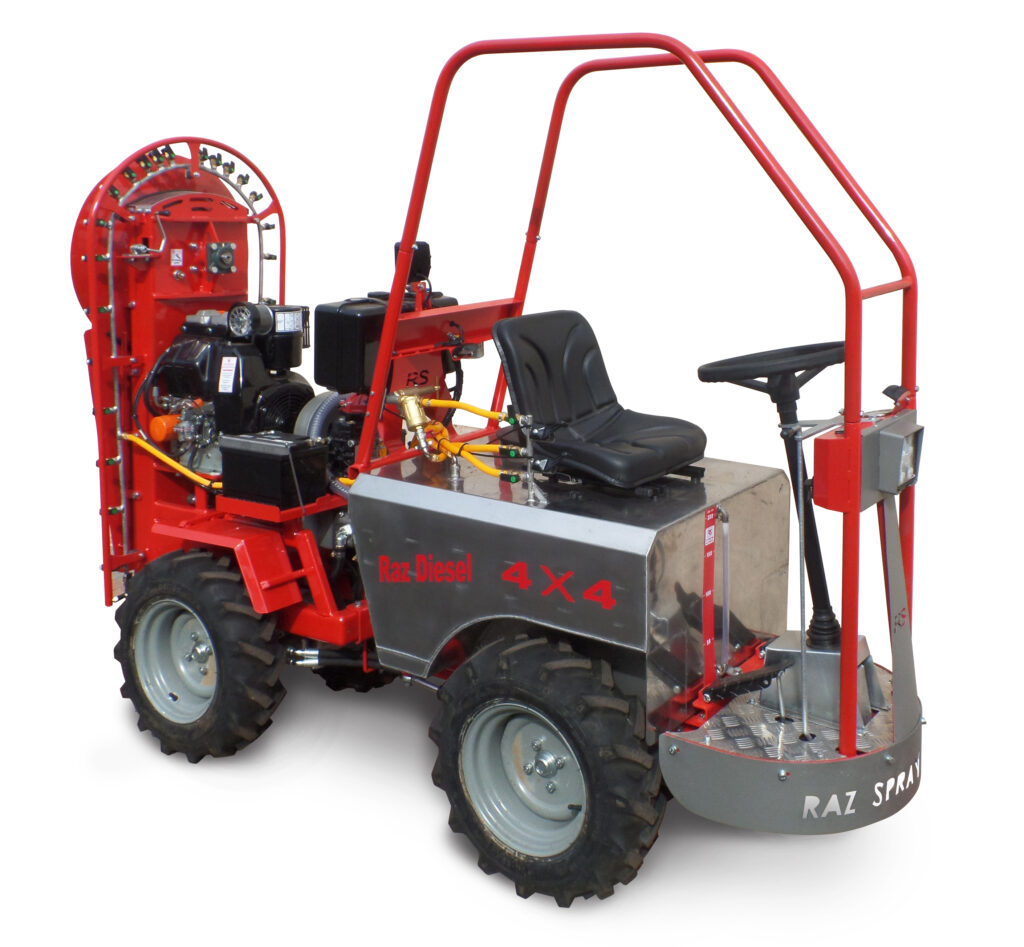

“Saar 12” – Self Propelled Sprayer
The best solution for large scale greenhouses spraying.Combine the efficiency of low volume spraying and manpower saving Specifications: “SAAR 12” – 4×4 self-propelled sprayer 12 HP Lombardini diesel engine Versatile sprayer with hydraulic drive system Power steering with electric start 200L stainless steel mixing tank Annovi Reverberi AR 30 diaphragm pump Includes pressure regulating valve and filter Stainless steel […]
“Saar 19” – Self Propelled Sprayer
THE Best solution for large scale greenhouses spraying.Combine the efficiency of low volume spraying and manpower saving. Specifications: “SAAR 19” – 4×4 self-propelled sprayer 19 HP Lombardini diesel engine Versatile sprayer with hydraulic drive system Power steering with electric start 200L stainless steel mixing tank Annovi Reverberi AR 30 diaphragm pump Includes pressure regulating valve and […]
“Mini-Saar 600” Low Volume Sprayer
Specifications: Spray head for trellis crops. Stainless steel manifold with ceramic nozzles Vanguard” “B & S” – Gasoline engine 7.5 – 10 Hp Manuel or electric starting. Front/rear ignition 50/80 liter. Stainless steel tanks. ”Ipro” pump + pressure valve. Fixed speed for constant spraying Option: “Yanmer” Diesel engine Dimensions: L 145 x W 65 x […]
Three Point Sprayer
Multifunction sprayer for spraying with spray guns, spray booms etc. Specifications: Three point sprayer Suitable for spraying with spray guns and a variety of spray booms. Stainless steel tank 300-1500 liter. Pressure control system including filtering & control device Spray pump piston/diaphragm. קודם הבא
Herbicides spray boom for vineyards
Specifications: The boom is built of 3 stainless steel cabins. Central fixed spray cabin + 2 telescopic, spring Cabins. Each cabin is covered with a brush protecting system to prevent hovering of the sprayed chemicals during windy weather conditions. Spraying width 1.5 – 3.5m קודם הבא
2 Row Low Volume Vineyard Sprayer
The “MINIRAZ” series represents our long years of experience with low volume spraying Specifications: The sprayer is suitable spraying 2 rows at the same time. 4 stainless steel arms, 2 for each arm air outlets for full coverage. Folding of the arms is adjustable according to the vineyard layout. Folding end arms is done by […]
2 Row HIGH Volume Vineyard Sprayer
Specifications: High pressure sprayer suitable spraying 2 rows at the same time with pressure control system. 4 arms, 2 stainless steel arms protectors. The folding of the arms is adjustable according to the vineyard layout, folding end arms is done by hydraulic piston system. “Conjet” ceramic nozzles build on a stainless steel manifold. Diaphragm or […]
Low Volume Table Grapes Sprayer
Specially designed for table grapes trained structure. The “MINIRAZ” series represents our long years of experiencewith low volume spraying. Specifications: 3 point hitch sprayer. 4 stainless steel air outlets for full coverage. 2 lower spring-like spray arms. Adjustment of the spraying angle according to the vineyard layout. Diaphragm or piston spray pump. Gear box : […]
High Pressure Trailed Vineyard Sprayer
For table and wine grapes Specifications: High pressure sprayer, pressure control system and adjustable nozzles. 2 horizontal arms equipped with spring joint to prevent breakage when touching an obstacle. 2 stainless steel arms suitable to change the spraying height and spraying angle. Diaphragm or piston spray pump. Valve system: Electric /Manuel /computer system operated from […]
